Supporting the Biggest Wheel Loaders: How Proper Boom Stands Prevent Structural Damage and Shop Accidents

In the world of mining and construction maintenance, few machines demand more respect than the ultra-class wheel loaders that keep production moving. Whether it’s a Cat 994K, Komatsu WA1200, or other high-capacity loaders, these giants represent immense lifting power—and equally immense risk when undergoing service. One of the most critical maintenance tasks on these machines is cylinder replacement and boom-related work, where the stakes are high and failure can be catastrophic.

This is where proper boom stands become more than just shop tools—they become essential infrastructure for safety, efficiency, and equipment longevity. At B&D Manufacturing Ltd., supporting the largest machines on earth has been our focus for decades, and boom support solutions are at the heart of that mission.

Why Boom Stands Matter in Wheel Loader Maintenance

When wheel loader booms need service—whether for lift cylinder replacement, pin refurbishment, or structural inspections—the boom must be secured in an elevated position. Relying solely on hydraulic pressure is never acceptable. Cylinders can fail, hoses can rupture, valves can leak, and unexpected movement can occur without warning.

A sudden boom drop can lead to:

• Crushing injuries or fatalities
• Major component damage
• Frame distortion from uncontrolled load shifts
• Extended downtime and lost production
• Costly insurance or compliance repercussions

Boom stands act as positive mechanical supports that eliminate these risks by transferring weight safely and predictably.

Challenges of Supporting Ultra-Class Wheel Loaders

Supporting the largest wheel loaders isn’t simply a matter of scaling up smaller solutions. These machines introduce unique engineering challenges:

Massive Boom Weights

Loaded boom masses can exceed tens of thousands of pounds, requiring stands engineered for extreme static loads and side-load resistance.

High Working Heights

On large loaders, the boom resting height can position the support point several meters above the shop floor. This requires:

• Adjustable-height boom stands
• Wide base footprints
• Engineered stability ratings

Uneven Surfaces

Shops often have sloped or imperfect floors. Proper boom stands must maintain stability even when deployed on less-than-perfect surfaces.

Repeatability and Safety Certification

In mines and heavy construction environments, safety compliance is not optional. Boom stands must offer:

• Verified load ratings
• Inspection points
• Compatibility with lockout/tagout procedures
• Documented certifications for safety audits

B&D Manufacturing’s solutions are designed specifically for these realities, ensuring compatibility with the biggest wheel loaders in operation today.

Preventing Structural Damage During Cylinder Replacement

Cylinder replacement is one of the most common maintenance tasks on wheel loaders—and one of the riskiest when booms are not properly supported.

Hydraulic Pressure Alone Isn’t Enough

Even when cylinders appear to hold, residual movement can occur when:

• Pins are removed
• Hoses are disconnected
• The machine settles on its suspension
• Weight distribution shifts due to shop activity

A boom stand eliminates the possibility of unintended movement, preventing cracking, twisting, or overstressing of loader frames.

Protecting Pins and Linkage

During disassembly, unsupported booms can:

• Bind pins
• Shift linkage unexpectedly
• Cause misalignment during reassembly

A stable boom position ensures technicians can remove and install components without fighting load forces.

Reducing Shop Accidents and Improving Maintenance Flow

Enhanced Technician Safety

Boom stands create a predictable maintenance environment. When the boom is supported mechanically rather than hydraulically, technicians gain confidence to work under and around the machine. This reduces:

• Near-miss incidents
• Lockout/tagout violations
• Time spent rechecking hydraulic lock valves or external blocking

Faster Maintenance Turnaround

Stable support simplifies:

• Pin removal
• Cylinder installation
• Alignment tasks
• Precision measurements and inspections

A well-supported boom keeps the job moving smoothly.

Protecting Your Equipment Investment

Structural damage from a boom drop is more than a safety issue—it’s expensive. Repairing loader frames or linkage components can cost hundreds of thousands of dollars and create weeks of downtime. Boom stands prevent these high-value failures.

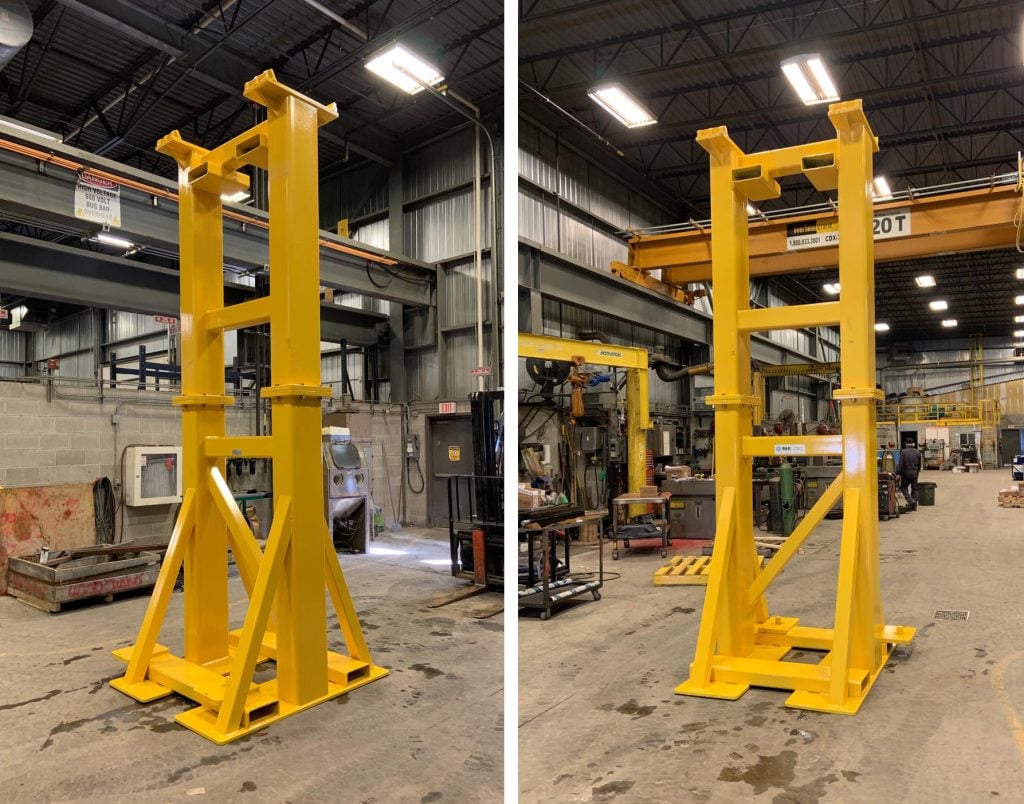

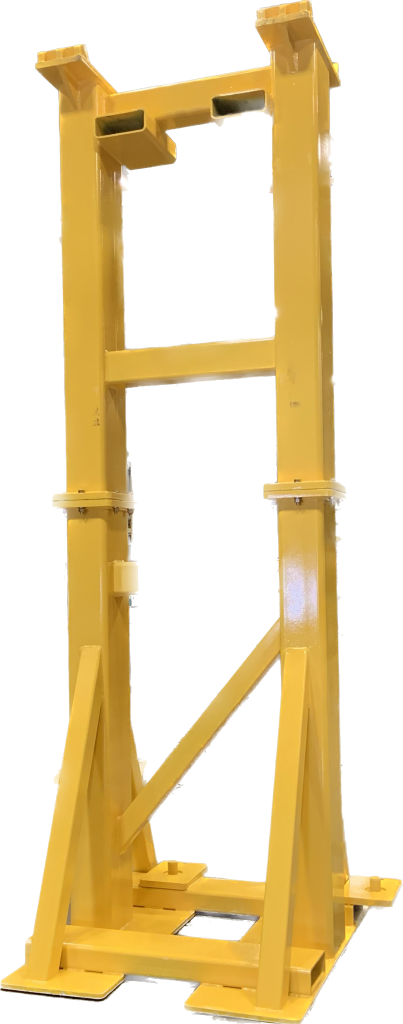

B&D Manufacturing: Purpose-Built Boom Stands for the Biggest Loaders

B&D designs and manufactures heavy-duty boom stands specifically engineered for mining and large construction loaders. Our stands offer:

• High-capacity load ratings suitable for ultra-class equipment
• Adjustable working heights for different loader models
• Wide-footprint stability and engineered weldments
• Certification-ready documentation
• Compatibility with complex shop environments

Each stand is designed with input from real maintenance professionals to ensure it performs under the harshest conditions.
