Faster Failure Analysis with the Right Tools

How B&D’s Pedestal Boom, Cradle, and Multi Handler Keep Your Fleet Moving

When a critical component fails on a haul truck, loader, or drill, the clock starts ticking. Every hour of downtime erodes production targets, squeezes maintenance budgets, and puts safety performance under a microscope. In mobile equipment maintenance, speed matters — but never at the expense of control or safety.

That’s where the right tools make all the difference.

B&D Manufacturing has spent decades engineering solutions that help mining operations recover faster from unexpected failures. Our Pedestal Boom Systems, Cradles, and Multi Handlers are purpose-built to safely remove damaged assemblies, streamline root cause analysis (RCA), and accelerate the return to service for your most valuable mobile assets.

Failure Happens — Fast Response Should Too

Mobile mining equipment operates in some of the harshest mechanical environments on the planet. Thermal cycling, shock loading, contamination, and structural fatigue all take their toll. Components such as hydraulic cylinders, wheel groups, booms, and drivetrain assemblies inevitably fail — often at the worst possible time.

But diagnosing the cause of that failure takes more than an experienced eye. It requires safe access, controlled handling, and the ability to remove damaged parts intact. If extraction is rushed or improvised, you risk:

• Losing critical evidence needed for RCA
• Damaging adjacent components
• Introducing secondary failures
• Putting maintainers at risk
• Extending downtime unnecessarily

That’s why mines that invest in the right support equipment consistently resolve failures faster and with fewer follow-up issues.

The B&D Advantage: Purpose-Built Tools for Safer, Faster Removal

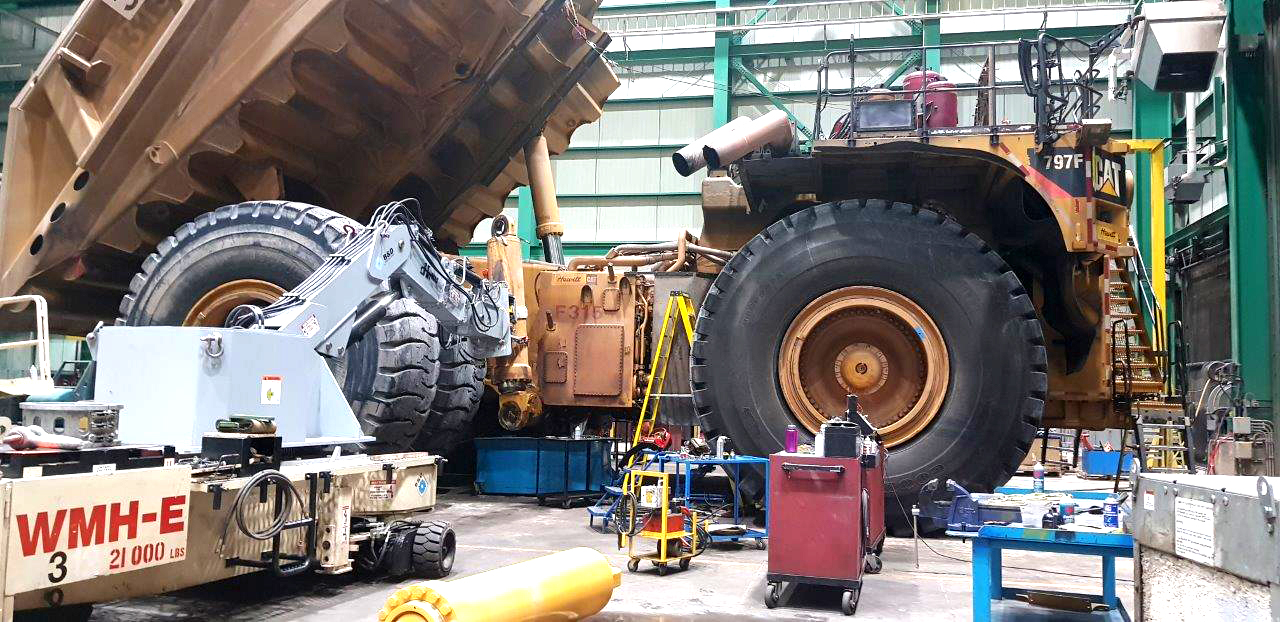

Pedestal Boom Systems — Controlled Precision in Tough Conditions

B&D’s Pedestal Boom Systems provide the power, reach, and stability required to remove large or compromised components without overstressing the machine or the crew. Designed for heavy mining environments, our booms:

• Deliver smooth, controlled movements for safe handling
• Allow maintainers to position tools and lifting devices with millimeter accuracy
• Reduce reliance on cranes and manual rigging
• Improve access around damaged structures

When a failed assembly must come out intact for analysis — not reduced to scrap — controlled articulation is critical. A pedestal boom gives your team the confidence to work methodically and safely, even when components are warped, seized, or structurally unpredictable.

B&D Cradles — Secure Support for Damaged Assemblies

Once a component is removed, it needs to be stabilized immediately. B&D’s Cradles are engineered to support wheel motors, final drives, cylinders, and other heavy assemblies in a secure, predictable orientation. This stability is essential for accurate and efficient failure analysis.

Key advantages include:

• Safe handling: Cradles eliminate the hazards of balancing components on blocks or improvised supports.
• Repeatable positioning: Technicians can index assemblies into optimal alignments for inspection.
• Protection of mating surfaces: Proper support prevents additional damage during transport or teardown.

By creating a standardized, controlled environment for inspection, Cradles help teams diagnose failures without compromising safety or evidence quality.

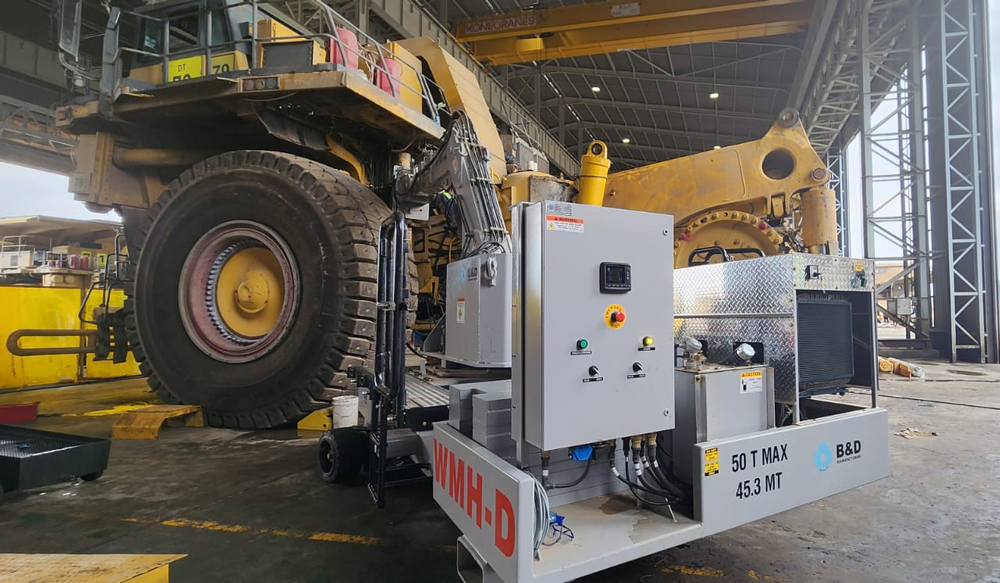

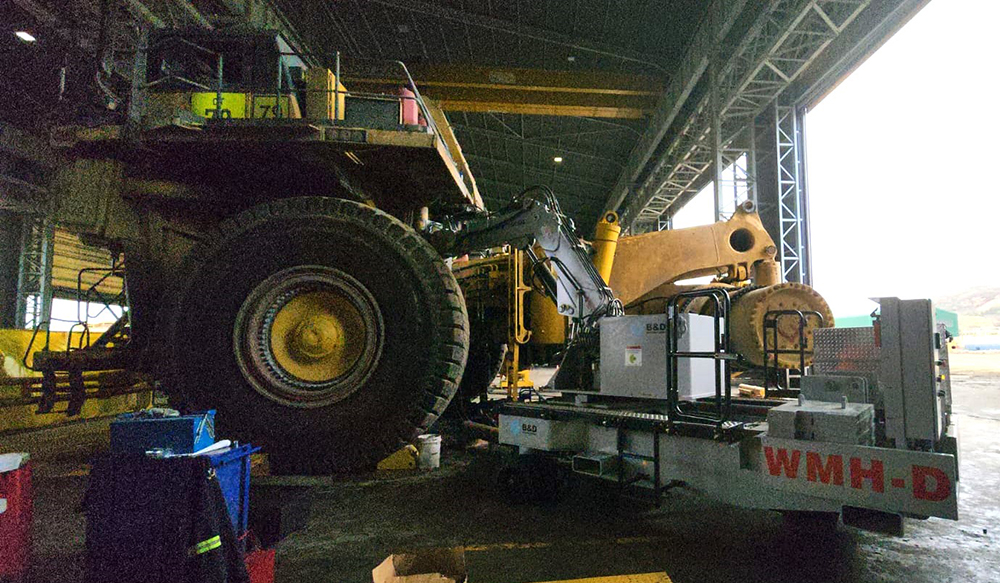

Multi Handler — Versatile Lifting and Positioning for High-Uptime Shops

Your shop needs a workhorse capable of handling diverse tasks with precision. The B&D Multi Handler is that tool. Designed to replace multiple pieces of equipment, it allows one operator to manage the safe removal, lifting, positioning, and installation of heavy components across the mine site.

Its benefits in failure analysis include:

• Reduced waiting time for cranes or specialized rigging crews
• Enhanced maneuverability in tight shop layouts
• Fast attachment changes for handling everything from buckets to transmissions
• Controlled rotation and tilt to expose failure points without manual intervention

Whether you’re extracting a failed pump, maneuvering a damaged cylinder, or repositioning a wheel motor for teardown, the Multi Handler eliminates bottlenecks that slow down diagnostics.

Better Tools Lead to Better RCA — and Better Availability

Speeding up failure analysis isn’t just about moving parts quickly. It’s about maintaining evidence integrity, protecting your workforce, and reducing the risk of rework.

With the right handling systems, your maintenance team can:

• Remove components safely and intact
• Inspect failures sooner and more thoroughly
• Conduct teardown in a controlled environment
• Identify root causes before they trigger other failures
• Return machines to service faster
• Build a library of forensic insights to strengthen long-term reliability strategies

Every minute saved on extraction, transportation, and inspection compounds into real gains in availability and cost efficiency.

Investing in the Tools That Protect Your People and Production

Mining is a high-stakes environment. Equipment failure is inevitable — but the consequences don’t have to be. By equipping maintenance teams with B&D’s Pedestal Boom, Cradle, and Multi Handler systems, mines significantly improve their response time to critical failures while reducing risk throughout the process.

The result?

Safer technicians. Faster diagnostics. Less downtime. More productive assets.

When the next failure occurs — and it will — make sure your team is prepared not just to react, but to recover smarter.

If you have any questions please reach out to Bill Cronley at bill.cronley@bdmfg.com
